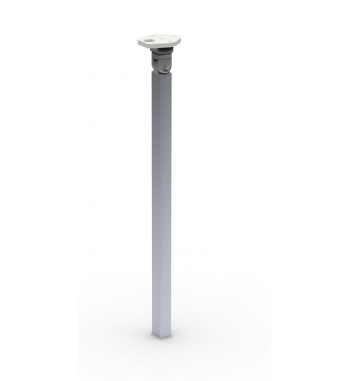

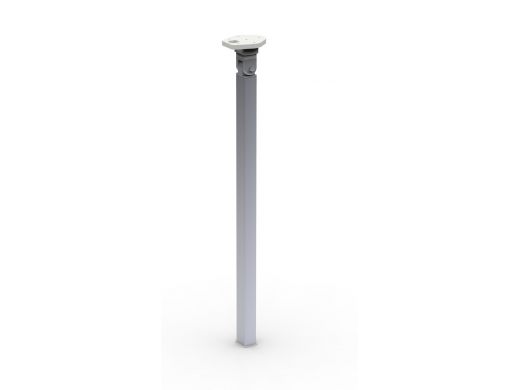

Folding support table leg Astro 3

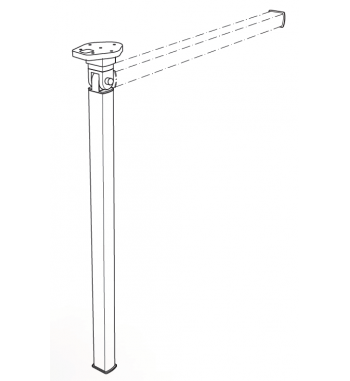

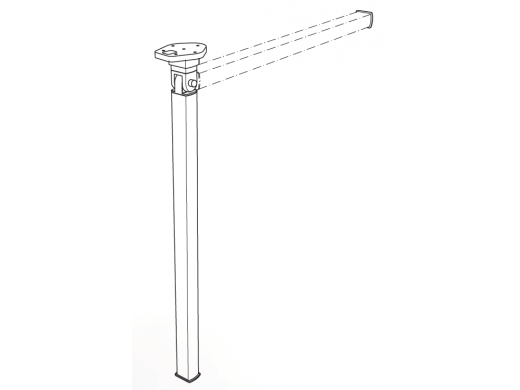

The leg is intended for use in campers and caravans. The leg is made of extruded, anodized aluminum and constitutes a solid base for mounting the table top. It has a hinge located under the table top mounting base, which allows the leg to be folded just under the table top, making it easier to move and store the table.

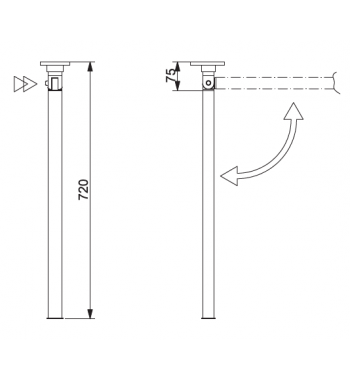

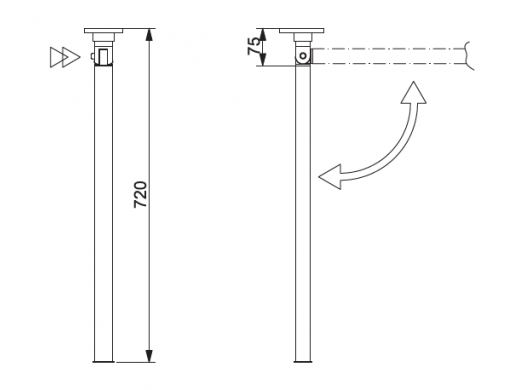

Dimensions:

• total leg height: 720 mm

• leg height after folding: 75 mm

• leg dimensions: 40 mm x 32 mm

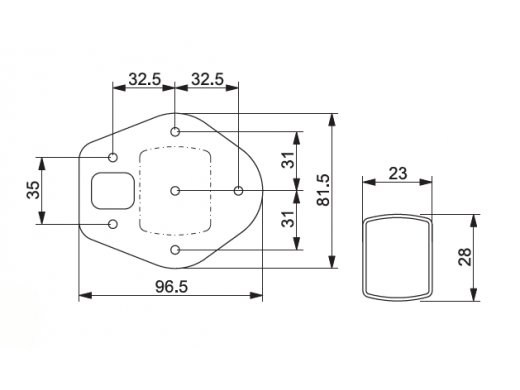

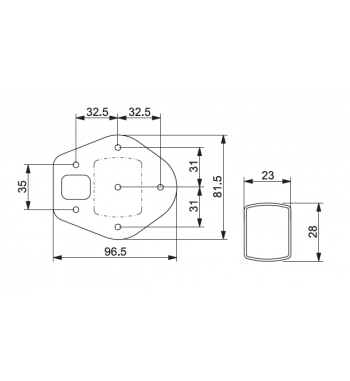

• dimensions of the base for mounting the tabletop: 96.5 mm x 81.5 mm
