Folding support table leg with bottom foot Astro 2

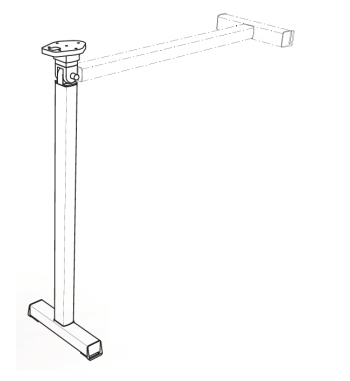

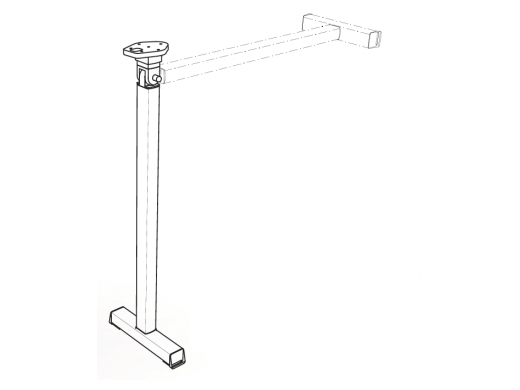

The leg is intended for use in campers and caravans. The leg is made of extruded, anodized aluminum and constitutes a solid base for mounting the table top. It has a hinge located under the table top mounting base, which allows the leg to be folded just under the table top, making it easier to move and store the table.

At the base of the leg there is a widened T-shaped foot that ensures greater stability of the table.

Dimensions:

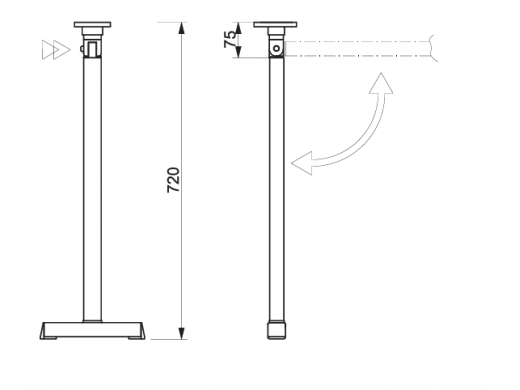

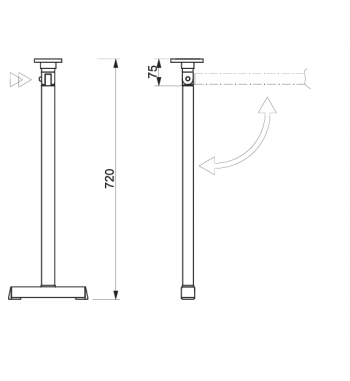

• leg height: 720mm

• leg height after folding: 75mm

• leg dimensions: 40 mm x 32 mm

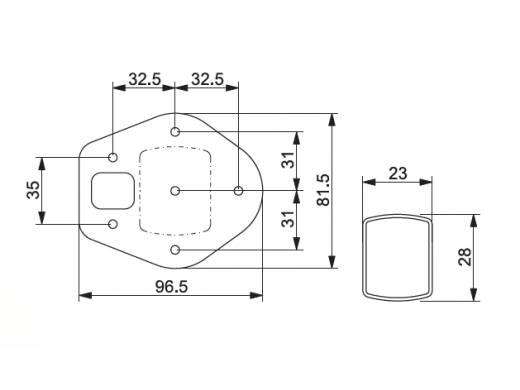

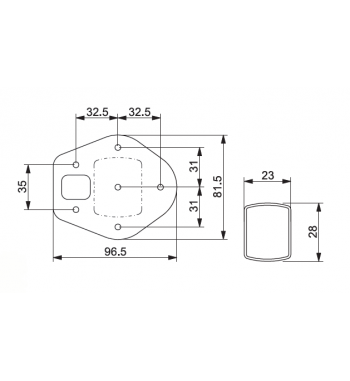

• dimensions of the base for mounting the table top: 96.5 mm x 81.5 mm

• foot dimensions: 235 mm x 41mm
